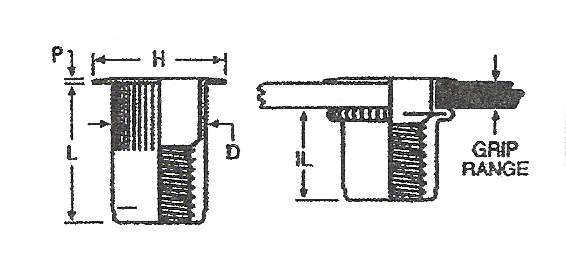

Thread Bulk Part Grip Drill Size/ "L" "P" "H" "D" "IL" Size Number Range Hole Size 0.015 0.003 0.015 Max Max 6-32 93033 .020-.080" 17/64 (.2656") .420" .030" .390" .265" .305" 8-32 93053 .020-.080" 17/64 (.2656") .420" .030" .390" .265" .305" 10-24 93093 .020-.130" 19/64 (.2969") .475" .030" .415" .296" .315" 10-32 93113 .020-.130" 19/64 (.2969") .475" .030" .415" .296" .315" 1/4-20 93133 .027-.165" 25/64 (.3906") .580" .030" .500" .390" .380" 5/16-18 93173 .027-.150" 17/32 (.5312") .690" .035" .685" .530" .470" 3/8-16 93213 .027-.150" 17/32 (.5312") .690" .035" .685" .530" .470" M4 93333 0.50-2.0 6.75 10.67 .76 9.91 6.73 7.75 M5 93353 0.50-3.3 7.6 12.07 .76 10.54 7.52 8.00 M6 93373 0.7-4.2 10 14.73 .76 12.70 9.91 9.65 M8 93383 0.7-3.8 13.5 17.53 .89 17.40 13.46 11.94 M10 93413 0.7-3.8 13.5 17.53 .89 17.40 13.46 11.94

The NLF Series, steel rivet nuts noted in this catalog are the most commonly used in industry, Rivet nuts in other styles, sizes and materials are also available tomeet any applicationg need. Call the IFT Technical Sales Department at 973-472-8810 for more information.
